FRP Perforation Underground Cable Tools 6 Mm Duct Rods For Telecom Project

FRP Perforation Underground Cable Tools 6 Mm Duct Rods For Telecom Project
FRP Perforation Underground Cable Tools 6 Mm Duct Rods For Telecom Project FRP Perforation Underground Cable Tools 6 Mm Duct Rods For Telecom Project

Large Image :  FRP Perforation Underground Cable Tools 6 Mm Duct Rods For Telecom Project

Product Details:
Place of Origin: NINGBOCHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: LS001
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Std export term
Delivery Time: 7 days after payment
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets / week
Detailed Product Description
Item: Cable Laying Tools Rod Outer: Polyethylene Coating
Rod Inner: Extruded By Fiberglass And Resin Technology: Pultrusion
Bending Radius: 295 Mm Breaking Tension: 4.5 T
High Light:

cable pulling accessories

,

underground cable installation equipment

FRP Perforation Underground Cable Tools 6mm Duct Rods For Telecom Project



Product Description
FRP Perforation Underground Cable Tools 6mm Duct Rods For Telecom Project

Conbra duct rod is fitted on steel frame for duct rodder. it is applied in towing lead-rope through a pipe. The rod surface is hard and smooth, so it can get through the narrow pipe or channel easily. The inner core of the rod is made of fiberglass and unsaturated polyester resin. The outside layer is smooth and firm. It is widely used for the cables works or cleaning in cable pipe or channels.

Quick Information

Rod jackets

Developed composite materials, hard, smooth and wear-resistant

Meter marks

Available

Rod colors

Yellow, other colors are optional

Rod Diameter

4mm-16mm, any measurement

Length 30~500m

Cable Rod Selling Points

  1. Light weight, durable, good resistance to chemical and corrosion.
  2. High tensile strength and bending properties to make it go through narrow pipes easily.
  3. good temperatures adaptability, it will not soften in hot weather nor become brittle in cold weather, its usability will not be affected by temperature.

Detailed Show For Example

FRP Perforation Underground Cable Tools 6 Mm Duct Rods For Telecom Project

FRP Perforation Underground Cable Tools 6 Mm Duct Rods For Telecom Project 0

Fiberglass duct rodder is composed of rodder and samll wheel, there are nylon guide tip and nylon shackle for fiberglass duct rodder with terminal end thread 12mm, the strandard length of roller guide tipe is 100m,

Rodder adopt FRP modling core material, the external cover with special engineering plastics,smooth and hight-strenght.

What are your Payment terms?

A. General speaking: TT 50% deposit, the balance is paid upon the copy of B/L.
B. We also accept: L/C, D/A, D/P, Western Union, MoneyGram and Paypal.

How to order?

Step 1 Contact Us
Show Us Item Name, Colors, Quantity and Details / Requirements
Step 2 Make a Performa Invoice for you
Step 3 Performa Invoice Confirm and Payment
Step 4 Production and Shipment

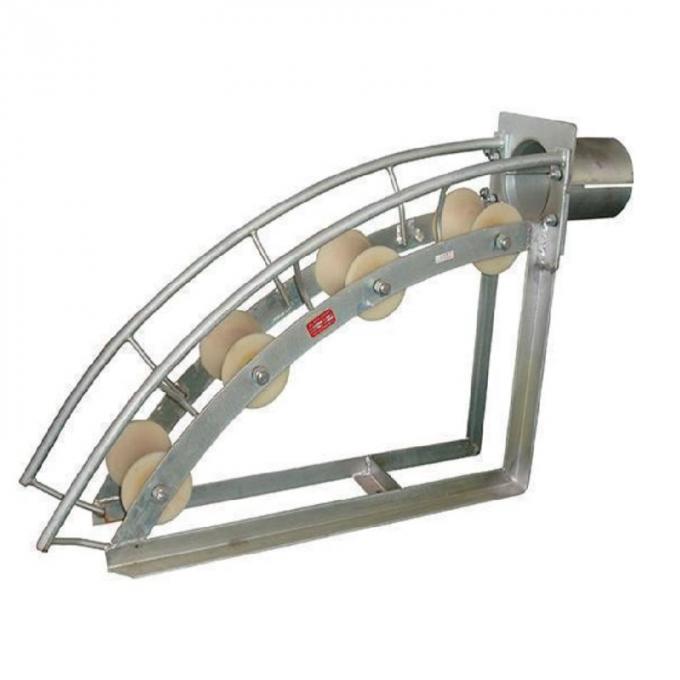

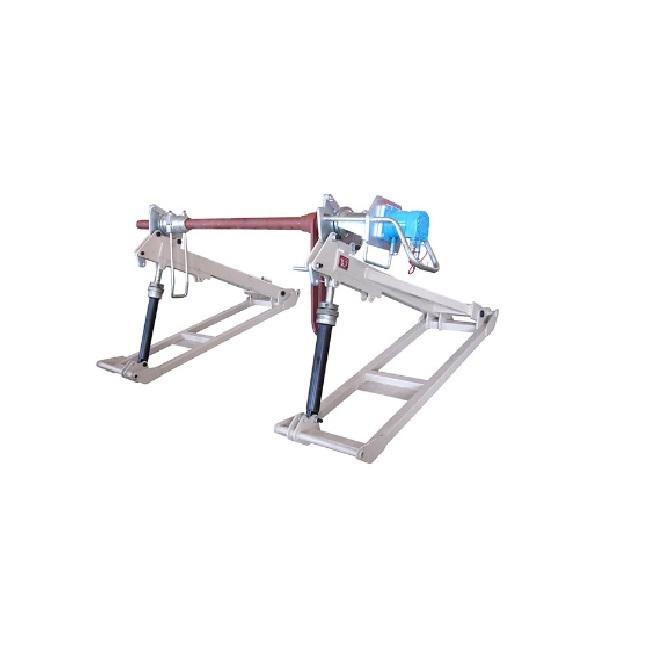

Other Underground Cable Tools:

FRP Perforation Underground Cable Tools 6 Mm Duct Rods For Telecom Project 1FRP Perforation Underground Cable Tools 6 Mm Duct Rods For Telecom Project 2
