Product Details:
Payment & Shipping Terms:
|
| Application: | Power Industry | Technical: | Pultrusion Process |
|---|---|---|---|
| Name: | Fiberglass Cable Running Rod | Surface Treatment: | Smooth |
| Cable Color: | Blue... | Bend Radius: | 12’(295mm) |
| High Light: | cable pulling device,underground cable installation equipment |
||
10mm Fish Tape Fiber Glass Wire Cable Running Rod Duct Fish Tape150m
Fiberglass Wire Cable is an excellent assistant tool for traction and guide line in pipeline. Smooth and flexible surface can make the perforated device easily through the narrow channel. It consists of glass fiber reinforced layer, high pressure and low density polyethylene protective layer (smooth, strong, can resist harsh environment).
Fiberglass Wire Cable is mainly used in the early part of the wall under the traction, and later developed into a sewer cable line and so on the line of traction. Glass fiber, non conductive, anti rust and anti-corrosion, excellent tensile strength. Using high quality steel, strong and durable, with good compression resistance and capacity, the appropriate structure of welding, under strong pressure to maintain its deformation. It has the advantages of time saving, labor saving, improved work efficiency, etc, and can be used for the cleaning and the optical cable, the cable and the plastic tube of the telecommunication pipeline.
Feature: Fish Tape Fiber Glass Wire Cable Running Rod Duct Fish Tape
Non-conductive, rust and corrosion resistant, superior pulling strength;
Sturdy and durable;
Good compression resistance capacity and proper structure;
No easy to break and ageing resistance;
Great tensile strength and strong bending property;
Equip with bracket and easy to carry;
It is simple and convenient to maintain;
Technical Data:Fish Tape Fiber Glass Wire Cable Running Rod Duct Fish Tape
| Specification | Rod Diameter (mm) | Φ4,Φ4.5,Φ5,Φ6,Φ8,Φ10,Φ11,Φ12,Φ13,Φ14,Φ15,Φ16 |
| Rod Length (m) | 30~500 | |
| Frame Spec.(mm) | 1300x450x1330,1200x420x1220,980x350x1000,680x240x700, etc | |
| Wheel Diameter(mm) | 300mm | |
| Wall thickness of Metal Frame | 2.2mm | |
| Color | blue, yellow, red, white etc | |
| Material | Rod Inner | Extruded by fiber glass and high strength resin at high temperature |
| Rod Outer | High Density polyethylene coating | |
| Iron Frame | Steel with high-temperature sprayed plastic or Spray coating | |
| Wheel | rubber | |
| Brake | Yes | |
| Drawing head | copper | |
| Physical Characters | Density | 150g/m |
| Working temperature | -40°C to +80°C | |
| Breaking tension | 4.5T | |
| Bending Radius | 295mm | |
| Technology | Pultrusion |

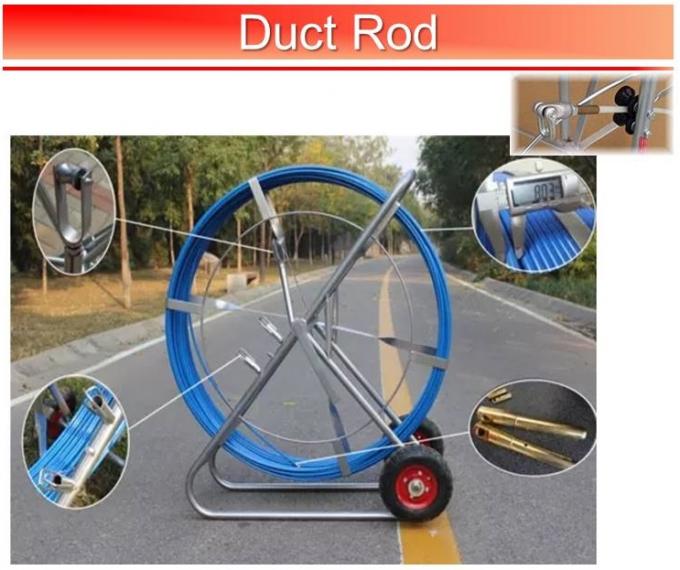

Fiberglass Duct Rod Photo
