Product Details:
Payment & Shipping Terms:
|
| Name: | Hook Grounding Block | Model: | SHL,SHG |
|---|---|---|---|
| Root Dia: | 75mm,60mm | Material: | Aluminum Or Cast |
| Applicable: | Conductor, Steel Wire, Earth Wire | Weight: | 4.5kg |
| High Light: | electrical wire pulling tools,stringing pulling tools |
||

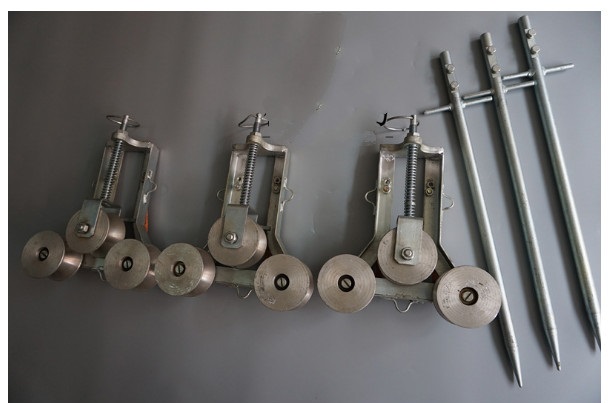

SHL75D Model Hook Grounding Block Appliable For Conductor/Steel Wire Rope
Hook Grounding Blocks Data
SHL75D Model Hook Grounding Block Appliable For Conductor/Steel Wire Rope
|
Product No. |
Model Type | Pulley Dia(mm) | Applicable Conductor ACSR(mm2) | Weight(kg) | Material of sheave |
| 12111 | SHL75D | Φ75 | Φ6-32 | 4.6 | Aluminum |
| 12112 | SHG60D | Φ60 | Φ6-25 | 5.7 | Steel |
Description:SHL75D Model Hook Grounding Block Appliable For Conductor/Steel Wire Rope
This hook grounding block can remove the induced electricity from the conductor or earth wire during the stringing operation. When in use, it can be mounted on the outlet side of tensioner or the inlet side of puller, and then pulled by two stay wires.Our hook grounding block is designed with triple sheave mechanism, which is automatically compacted by the torsion spring. The maximum allowable current reaches 100A, and the transit time is only 0.1 second. The recommended sectional area of the supporting earth wire is 25mm2.
Can you customize the products as per our request?
A.: Yes, we do OEM and ODM. We could make the product suggestion based on your idea and budget.
How to get a sample from you?
A.: All samples will be free if unit cost under 10USD, but the freight should be on your side.
If sample sent by your express account like DHL, UPS etc, we will send sample to you directly (freight collect)
If sample sent by our express account like DHL,UPS etc, you should pay freight in advance (freight prepaid)
Any sample cost could be returned to you as part payment for next large order
How about the delivery date?
A.: Within 15 days after deposit received. Urgent order or small order will be handled case by case.
What are your Payment terms?
A. General speaking: TT 50% deposit, the balance is paid upon the copy of B/L.
B. We also accept: L/C, D/A, D/P, Western Union, MoneyGram and Paypal.
How to order?
| Step 1 | Contact Us |
| Show Us Item Name, Colors, Quantity and Details / Requirements | |
| Step 2 | Make a Performa Invoice for you |
| Step 3 | Performa Invoice Confirm and Payment |
| Step 4 | Production and Shipment |
