300 KN Max Load Wire Reel Stands , Wire Pulling Tools For Releasing Cables

300 KN Max Load Wire Reel Stands , Wire Pulling Tools For Releasing Cables
300 KN Max Load Wire Reel Stands , Wire Pulling Tools For Releasing Cables 300 KN Max Load Wire Reel Stands , Wire Pulling Tools For Releasing Cables

Large Image :  300 KN Max Load Wire Reel Stands , Wire Pulling Tools For Releasing Cables

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: SI
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Export Term
Delivery Time: 8 - 15 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets / month
Detailed Product Description
Name: Reel Stand Type: Hydraulic
Model: SI Max Load: 300 KN
Weight: 280 Kg Disc: <= 30 T
High Light:

cable pulling device

,

cable pulling accessories

10 Ton Hydraulic Cable Drum Jacks Cable Jack Stand For Releasing Cables



10 Ton Hydraulic Cable Drum Jacks Cable Jack Stand For Releasing Cables

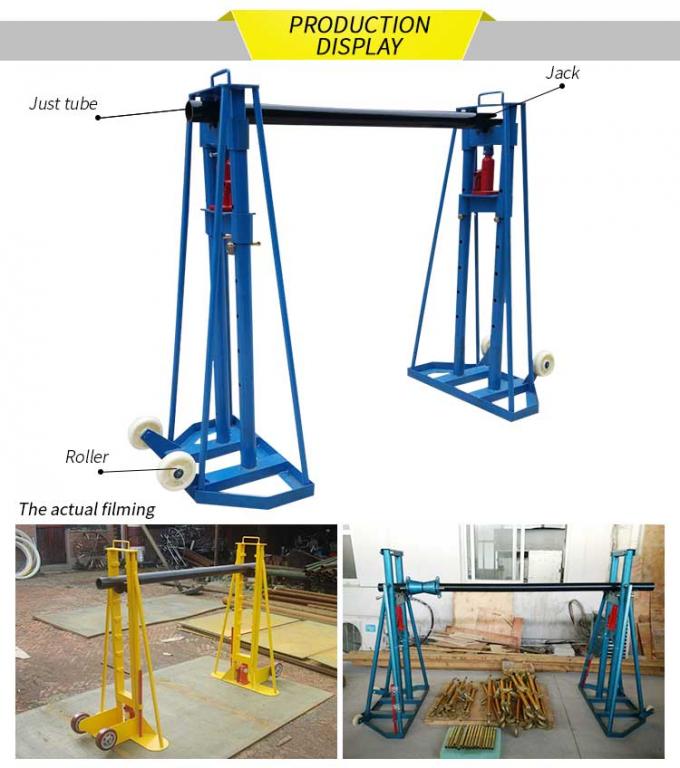

Cable reel stand is almost indispensable for use in the cable yard. Versatile and easily adjustable within seconds to accommodate a vast range of drums. Excellent all round stability, fitted with wheels to be easily moved by one person. Supplied complete with spindle bar and locking collars.

Technical Data:300 KN Max Load Cable Jack Stands , Wire Pulling Tools For Releasing Cables

Model Rated Load Applicable wire dics Disc Weight Weight
SI-5 50KN ≤2400 ≤5T 80KGS
SI-10 100KN ≤2700 ≤10T 100KGS
SI-15 150KN ≤3600 ≤15T 122KGS
SI-20 200KN ≤4000 ≤20T 145KGS
SI-30 300KN ≤4000 ≤30T 280KGS

Heavy Load Hydraulic Cable Reel Stand, Adjustable Cable Drum Jack

Cable reel stand is used to lift, support and stabilise low and high voltage cable drums to enable efficient cable laying and pulling for low and high voltage cables.

It is applicable to the placement of the cable tray,hydraulic lifting,carrying the weight of a large.

The bottom with small wheels,easy to move,can be equipped with a braking device,using the foot brake.

300 KN Max Load Wire Reel Stands , Wire Pulling Tools For Releasing Cables 0

Other Type Simple reel payout stands is applied to adjust reel by screw mandrel. Light, handy and practicable. it fit releasing wire manually.

Large capacity hydraulic conductor reel stands: is connected with hydraulic tensione or puller tensioner throught quick coupling.



Please click below picture to find the video about the testing

300 KN Max Load Wire Reel Stands , Wire Pulling Tools For Releasing Cables 1
