Easy Operated Hydraulic Wire Crimper Safe For Crimping Copper / Aluminum Lugs

Easy Operated Hydraulic Wire Crimper Safe For Crimping Copper / Aluminum Lugs
Easy Operated Hydraulic Wire Crimper Safe For Crimping Copper / Aluminum Lugs Easy Operated Hydraulic Wire Crimper Safe For Crimping Copper / Aluminum Lugs

Large Image :  Easy Operated Hydraulic Wire Crimper Safe For Crimping Copper / Aluminum Lugs

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: YQK120
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: negotiable

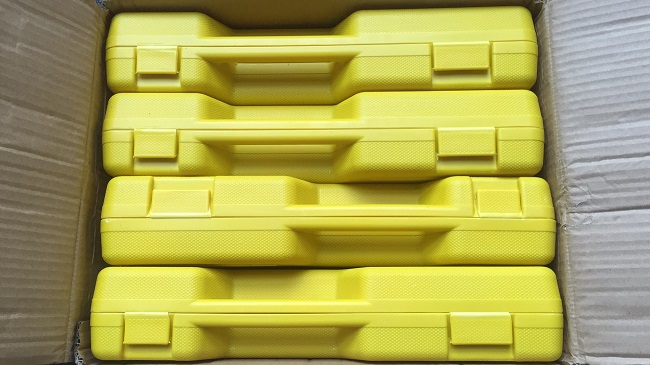

Packaging Details: Plastic bag
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 5000 pcs / month
Detailed Product Description
Type: Hydraulic Crimping Tools Crimping Force: 12T
Stroke: 14 Mm Name: Hydraulic Crimper
Using: Crimping Weight: 4 Kg
High Light:

hydraulic cable crimping tool

,

hydraulic wire crimping tool

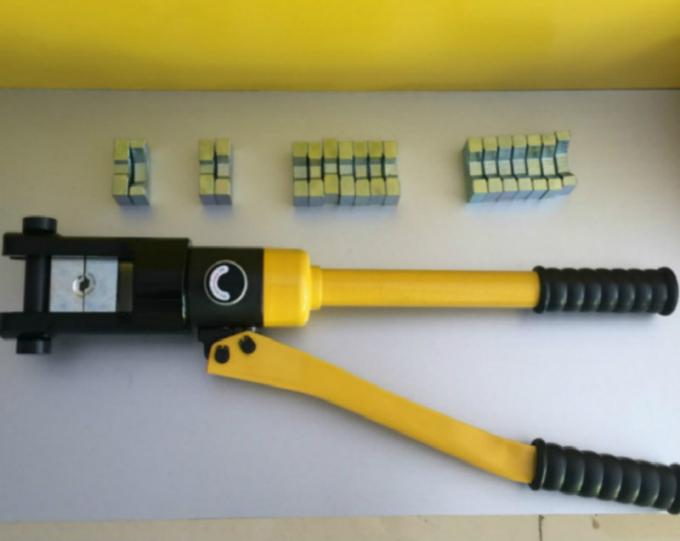

YQK-120 Hydraulic Crimping Tool For Crimping Copper And Aluminum Lugs



Specifications YQK-120 Hydraulic Crimping Tool For Crimping Copper And Aluminum Lugs

1) Light weight
2) High efficiency
3) Save time and labor
4) High quality

Characteristics YQK-120 Hydraulic Crimping Tool For Crimping Copper And Aluminum Lugs

1. Compression mould can be replaced, quick and safe operation;

2. Compression configuration: 10, 16, 25, 35, 50, 70, 95,120mm2

3. Press tools is suitable for DIN.AWG.JIS.

4. There is a safe protective equipment of "Kacha" voice when it reaches to high or low voltage.

5. It can be operated by one person , it saves time and labor.

6. Pump is connected to the tools, it can turn 180 degree when pressed on the head.

Technical Data of YQK-120 Hydraulic crimping tools, manual hydraulic press tool

Model Crimping range(mm2) Crimping force(T) Crimeping type Stroke(mm) Weight(kg) Crimping dies(mm2)
YQK-120 10-120 12 hexagon 14 4.0 10,16,25,35,50,70,95,120

Specification

ITEM No.:YQK-70

Press-joint range:4-70mm²
Max Pressure:8T
Max Travel:10mm
Mould:4,6,8,10,16,25,35,50,70mm²
crimping type:besiege pressure

ITEM No.:YQK-120

Press-joint range:10-120mm²
Max Pressure:12T
Max Travel:14mm
Mould:10,16,25,35,50,70,95,120mm²
crimping type:besiege pressure

ITEM No.:YQK-240

Press-joint range:16-240mm²
Max Pressure:15T
Max Travel:22mm
Mould:16,25,35,50,70,95,120,150,185,240mm²
crimping type:besiege pressure

ITEM No.:YQK-300

Press-joint range:16-300mm²
Max Pressure:15T
Max Travel:22mm
Mould:16,25,35,50,70,95,120,150,185,240,300mm²
crimping type:besiege pressure

Easy Operated Hydraulic Wire Crimper Safe For Crimping Copper / Aluminum Lugs 0

About us: Lingsheng Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China. We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work. Our Tubular Gin Pole, Come Along Clamp, Wire Rope Pulley Block, Nylon Sheave Hoisting Tackle, Cable Mesh Sock Grip, Line Stringing Swivel…all are OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world, and has wined the best brand reputations. Some items like the Cable Drum Trailer, and the cable jack stands we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either Technical questions or Products requirements. Please approach us.
