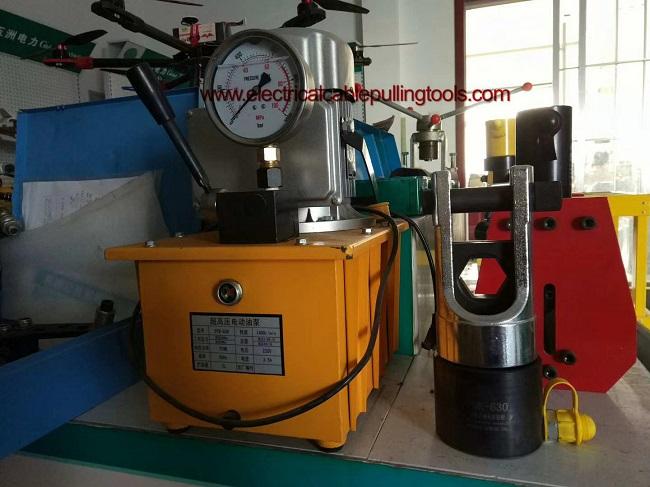

Electric Motor Driven Hydraulic Oil Pump , DYB-63A Hydraulic Electric Pump

Electric Motor Driven Hydraulic Oil Pump , DYB-63A Hydraulic Electric Pump
Electric Motor Driven Hydraulic Oil Pump , DYB-63A Hydraulic Electric Pump Electric Motor Driven Hydraulic Oil Pump , DYB-63A Hydraulic Electric Pump

Large Image :  Electric Motor Driven Hydraulic Oil Pump , DYB-63A Hydraulic Electric Pump

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: DYB-63A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Wooden case
Delivery Time: 8-10 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 sets / week
Detailed Product Description
Model: DYB-63A High Pressure: 70 Mpa
Low Pressure: 7 Mpa Name: Hydraulic Oil Pump
Engine: Electric Feature: Protable
High Light:

hydraulic cable crimping tool

,

hydraulic crimping tool for electrical cables

DYB-63A Electric Motor Driven Hydraulic Oil Pump,Hydraulic Electric Pump



Application DYB-63A Electric Motor Driven Hydraulic Oil Pump,Hydraulic Electric Pump

For a variety of wire, strand crimping, reinforcement, cutting jobs, it is the construction of power transmission line construction indispensable work tool. Change the hydraulic pump to work as an independent source, also used in other forms of hydraulic actuators, and versatile.

Specifications DYB-63A Electric Motor Driven Hydraulic Oil Pump,Hydraulic Electric Pump
1. High strength
2. Corrosion Resistance
3. Light weight
4. Long life

5. Reasonable structure

6. Easy to operate,reliable

7. High output pressure

8. Easy to maintain.

Data Sheet DYB-63A Electric Motor Driven Hydraulic Oil Pump,Hydraulic Electric Pump

Item No. DYB-63A
Working pressure high pressure:70Mpa low pressure:7Mpa
Rated output high pressure:0.32L/min low pressure:2.6L/min
Power Rating 750W Speed 1400r/min
Working Power 50Hz or 60Hz, 220V or 380V
Oil Capacity 10L Type of oil 15# antiwear hydraulic oil
Weight 31kg Noted single acting valve and normal pump

Function:DYB-63A Electric Motor Driven Hydraulic Oil Pump,Hydraulic Electric Pump

1. High and low speed two stage for quick oil output. Turbine oil absorption could ensure max. effective oil volume.

2. Pressure safety valve over pressure unit could avoid over pressure damage. At 700kg/cm2, automatically pressure release.

3. High pressure is for driving piston and low pressure is for piston reset(DYB-63A),

4. Oil pipe fitted with quick coupling could be ordered at any length.

5. Oil pipe coupling fitted with PT3/8'' thread.

Features:DYB-63A Electric Motor Driven Hydraulic Oil Pump,Hydraulic Electric Pump

1. Parameter:2−stage pump with heat exchange,380v,50Hz,three phase

2. The maximum operating pressure :70Mpa

3. Flow:low pressure 10 L⁄m, high pressure4L⁄m

4. Operation :suitable for single and multi–operation (2 pair ports)

5. Two stage with hear exchange

Electric Motor Driven Hydraulic Oil Pump , DYB-63A Hydraulic Electric Pump 0

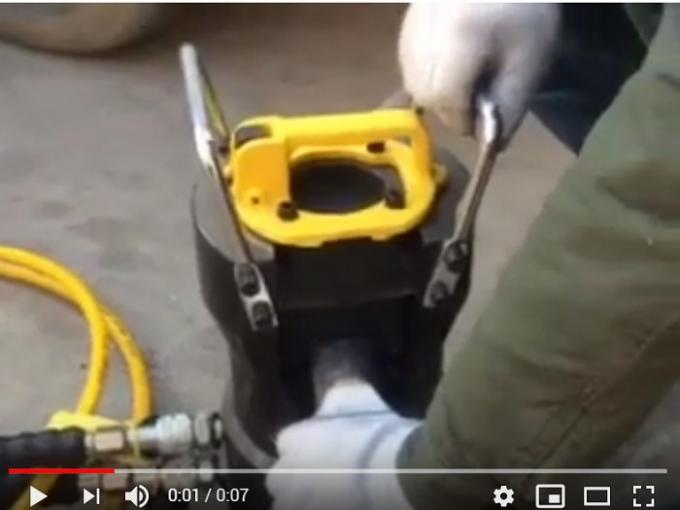

Please click below picture to find the video about application method

Electric Motor Driven Hydraulic Oil Pump , DYB-63A Hydraulic Electric Pump 1
