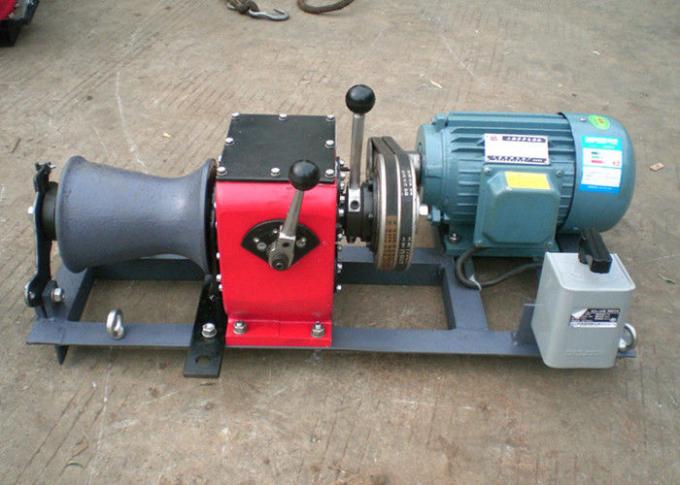

Tower Erection 1 Ton Winch , High Versatility Winch Machine For Cable Pulling

Tower Erection 1 Ton Winch , High Versatility Winch Machine For Cable Pulling
Tower Erection 1 Ton Winch , High Versatility Winch Machine For Cable Pulling Tower Erection 1 Ton Winch , High Versatility Winch Machine For Cable Pulling

Large Image :  Tower Erection 1 Ton Winch , High Versatility Winch Machine For Cable Pulling

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: JJM1D
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Wooden case
Delivery Time: 8-15 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets / month
Detailed Product Description
Name: Electric Cable Winch Puller Type: Cable Pulling Winch
Engine: Electric Pulling Force: 1T
Pulling Speed: 12m/min Slow
High Light:

portable capstan winch

,

gas powered winch

Cable Winch Puller 1 Ton Electric Cable Winch Puller For Tower Erection



Cable Winch Puller 1 Ton Electric Cable Winch Puller For Tower Erection

Electric Motor Specification
Rated Power:1.5KW
Rated Current:3.4A
Rated Voltage:380V/220V
Rated Frequency:50Hz
Weight:19KG
Rotate Speed:2840r/min

Cable Winch Puller 1 Ton Electric Cable Winch Puller For Tower Erection
We have the complete production equipments and professional production team to manage the whole process from production to packing shipment.All products will 100% test before delivery to ensure the quality.
Technical Data
Cable Winch Puller 1 Ton Electric Cable Winch Puller For Tower Erection

Model NO. Engine Gear Pulling Speed(m/min) Rated Pulling Force(Ton) Weight(Kg)
JJM1-D Electric motor Slow 10 0.8 46
Fast 15 0.6
Reverse 12 NO Lifting

Cable Winch Puller 1 Ton Electric Cable Winch Puller for Tower Erection Application

1 Ton Small Electric Winch 220v Electric Winch 380v is used for tower erection,pole setting,stringing wire in electrical power line construction.Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.

Features of engine powered winch

1. High versatility

2. Compactstructure

3. Smallvolume, lightweight, convenience in using and transferring

4. Driving stably

5. Very light noise

6. With big drum rope capacity to make you a wide range of choice for the lifting height or pulling length.

7. Adjustable lifting or pulling speed for different usage environment.

Our Service:

High quality fasteners products with best price;
Many years excellent experience with pre-sale and after-sale service;
Strict quality control according to your requirement;
Professional packing team keep every pack safely;

Send you some free samples along with your cargo to share us quality;



Tower Erection 1 Ton Winch , High Versatility Winch Machine For Cable Pulling 0
