JJM8D Model 80 KN Cable Winch Puller Petrol Capstan Winch For Cable Stringing

JJM8D Model 80 KN Cable Winch Puller Petrol Capstan Winch For Cable Stringing
JJM8D Model 80 KN Cable Winch Puller Petrol Capstan Winch For Cable Stringing JJM8D Model 80 KN Cable Winch Puller Petrol Capstan Winch For Cable Stringing

Large Image :  JJM8D Model 80 KN Cable Winch Puller Petrol Capstan Winch For Cable Stringing

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: JJM8D
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Wooden case
Delivery Time: 8-15 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets / month
Detailed Product Description
Model: JJM8D Type: Cable Winch
Name: Electric Power Capstan Using: Cable Stringing
Pulling Force: 8T Engine: Electric Type
High Light:

gasoline powered winch

,

portable capstan winch

80 KN Cable Winch Electric Engine Power Capstan Winch For Cable Stringing



80 KN Cable Winch Electric Engine Power Capstan Winch For Cable Stringing is used for tower erection,pole setting,stringing wire in electrical power line construction.It has the samll size and compact strucure, high efficiency, reliable and safety operation, and widely used in the power construction.

Technical data 80 KN Cable Winch Electric Engine Power Capstan Winch For Cable Stringing:

engine power is electric engine, pulling speed when it is slow, it is 4m/min, pulling force is 8KN.In our plant ,we also are making the petrol and diesel engine wire rope pulling force, the motor has HONDA, YAMAHA, also Domestic brand.

Model Type Engine Power Gear Pulling Speed(m/min) Pulling Force(Ton)
JJM8-D Electric Engine Slow 4 8
Quick 9 4
Reverse 5

How to operate the capstan winch?

before the boot, you must first open the cutter mill drive clutch, and the before and after change lever to the neutral position aside, then to boot.when the clutch toggle action should fast, otherwise the interlock brake does not work, increase the impact of the formation of the pawl of the automatic braking. At boot time should not be too hard, to be able to drive the input shaft pulley without slip can be. must open when shifting the transmission clutch, otherwise it will damage the gear after shifting should check whether shifting firmly together, jump stop to prevent the occurrence of the phenomenon.variable-speed process, if the gear difficult phenomenon occurs, can not be forced into the block, you can use hand-cranked device to help block specific practices such as: hand with a wrench toggle means to rotate at an angle to the block.

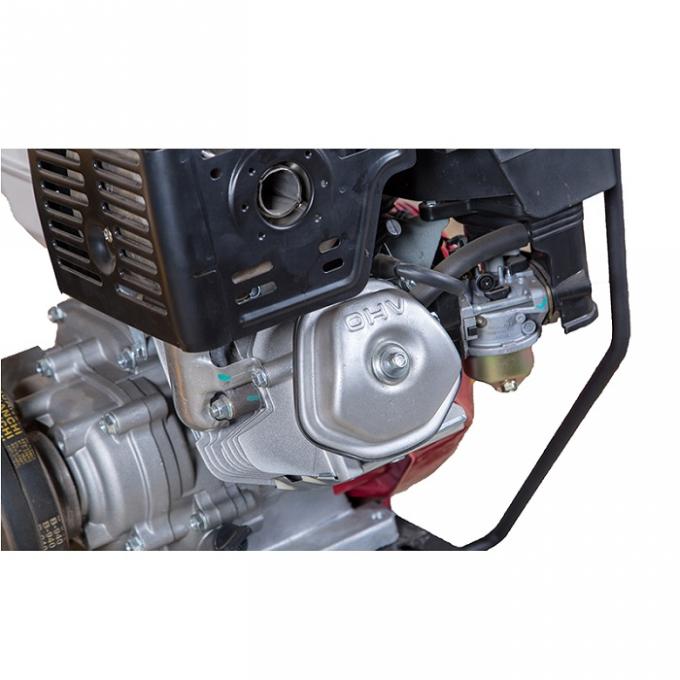

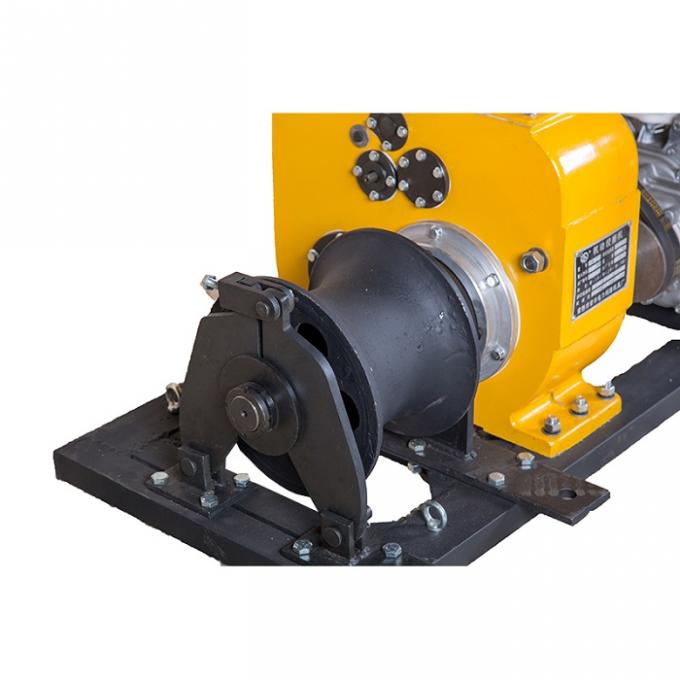

JJM8D Model 80 KN Cable Winch Puller Petrol Capstan Winch For Cable Stringing 0JJM8D Model 80 KN Cable Winch Puller Petrol Capstan Winch For Cable Stringing 1

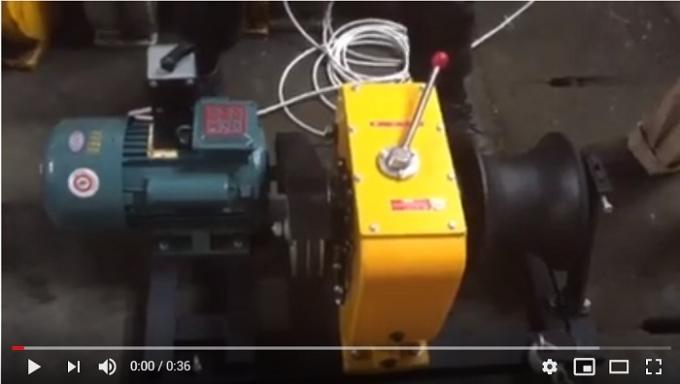

Please click below picture to find the video about application method

JJM8D Model 80 KN Cable Winch Puller Petrol Capstan Winch For Cable Stringing 2
