8/12.5kn Electrical Cable Pulling Tools HSS Hand Wire Rope Winch Iso Standard

8/12.5kn Electrical Cable Pulling Tools HSS Hand Wire Rope Winch Iso Standard
8/12.5kn Electrical Cable Pulling Tools HSS Hand Wire Rope Winch Iso Standard 8/12.5kn Electrical Cable Pulling Tools HSS Hand Wire Rope Winch Iso Standard 8/12.5kn Electrical Cable Pulling Tools HSS Hand Wire Rope Winch Iso Standard

Large Image :  8/12.5kn Electrical Cable Pulling Tools HSS Hand Wire Rope Winch Iso Standard

Product Details:
Place of Origin: ningbo china
Brand Name: Linkai
Certification: iso ce
Model Number: HSS
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Get the latest
Packaging Details: Wooden case
Delivery Time: 5-8work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200sets/day
Detailed Product Description
Name: HSS Wire Rope Pulling Winch Model: HSS408
Rated Lifting: 8/12.5kn Type: Cable Pullingtools
Once Journey: >=40mm Net Weight: 6.8
High Light:

electrical wire pulling tools

,

conductor pulling tools

Tirfor with Stainless Steel Wire Cable Pulling Tools HSS Hand Wire Rope Winch



Tirfor lifting hoist with stainless steel wire are designed to pull or lift ropes, conductors or loads.
Quick Information:
1. Trifor lifting hoist
2. Electrical Cable pulling tools
3. Apply in the long distance pulling without power

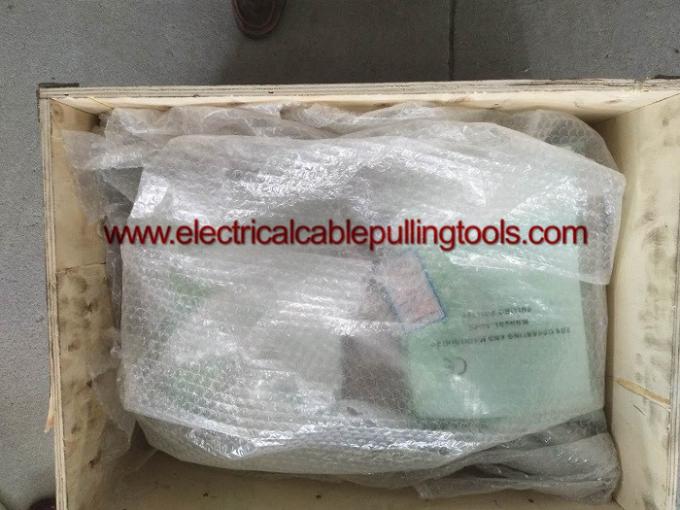

4. wooden case packing
5. Donghuan Brand

Tirfor lifting hoist with stainless steel wire

HSS Hand wire rope pulling winch

Item number

14183 14184 14185 14186

Model

HSS408 HSS416 HSS432 ISS454

Rated Lifting/Pulling (KN)

8/12.5 16/25 32/50 54

Once journey(MM)

≥40 ≥40 ≥16 ≥20

Diametre of

steel rop (MM)

Φ8 Φ11.6 Φ16 Φ22

Standard length

of steel rope (M)

20 20 20 20

Net weight (KG)

6.8 13 25 52

Hand wrenching

at the rate load (N)

≤343 ≤400 ≤441 ≤550

Encasement dimension (MM)

420x106x250 530x126x315 660x160x360 930x390x150

Configuration:

It has three functions of lifting, pulling and tensioning. It is suitable for long distance lifting or pulling in the field without power source.

8/12.5kn Electrical Cable Pulling Tools HSS Hand Wire Rope Winch Iso Standard 08/12.5kn Electrical Cable Pulling Tools HSS Hand Wire Rope Winch Iso Standard 1
