100T Punching Force Hydraulic Hole Punch Machine Along With Electrical Pump

100T Punching Force Hydraulic Hole Punch Machine Along With Electrical Pump
100T Punching Force Hydraulic Hole Punch Machine Along With Electrical Pump 100T Punching Force Hydraulic Hole Punch Machine Along With Electrical Pump

Large Image :  100T Punching Force Hydraulic Hole Punch Machine Along With Electrical Pump

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: CH100
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Get the latest
Packaging Details: wooden case
Delivery Time: 3-5work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200sets/day
Detailed Product Description
Model: CH100 Punching Force: 100 T
Throat Diameter: 135mm Height: 400mm
Weight: 150kg Apply: Punching Copper And Iron
High Light:

hydraulic cable crimping tool

,

hydraulic wire crimping tool

Hydraulic Hole Punching Machine Model CH-100 Used Along With Hydraulic Pump



Hydraulic Hole Puncher Hydraulic Punching Tools with Punching Force 50T

Item number

Model

(KN)

Punching

force

(MM)

Punching

thickness

(MM)

throat

diameter

(MM)

Hight

(KG)

Weight

(MM)

specification of

matching mold

hydraulic pump

06243 CH-60

300

iron6

copper10

95 350 19

Φ10.5,Φ13.8,

Φ17,Φ20.5

CP-700/ZCB6-5-A3
06244 CH-70 350

iron10

copper12

110 360 35

Φ10.5,Φ13.8,

Φ17,Φ20.5

CP-700/ZCB6-5-A3
06248 CH-80

500

iron16

copper20

115 340 45

Φ16,Φ18,

Φ22,Φ25

ZCB6-5-AB
06249 CH-100 1000

iron18

copper20

135 400 150

Φ25,Φ28,

Φ32,Φ36

ZCB6-5-AB



CH -60/70/80/100 eyelet punching machine is a remote control tool, works with an external hydraulic pump (Hand Foot or Electric pump). It is designed to punch round holes on Cu/Al Busbar. With 4 pairs standard punching dies (10.5 / 13.8 / 17 / 20.5mm), punching hole size is between diameter 10.5mm and diameter 20.5mm. Busbar thickness should below or equivalent to 12mm. With hydraulic power, 4 pairs sharp punching dies, easy fast and clean punching can be achieved.



Uses:For copper and aluminum and low carbon steel punching,

it needs to be equipped with a hydraulic pump.

Explain:The mold size can be customized

according to the requirements of the user.

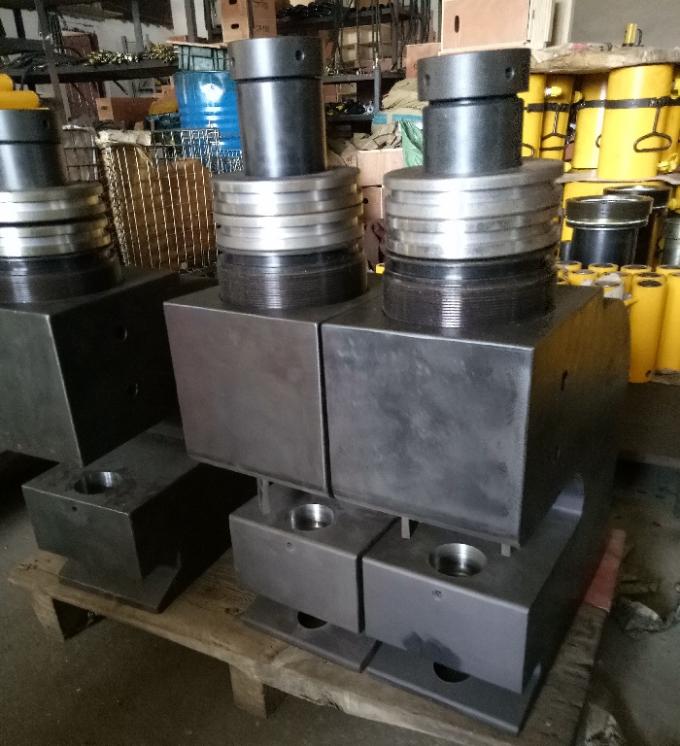

100T Punching Force Hydraulic Hole Punch Machine Along With Electrical Pump 0
