High Flexibility Hydraulic Crimping Tool Busbar Processing Machine Small Size

High Flexibility Hydraulic Crimping Tool Busbar Processing Machine Small Size
High Flexibility Hydraulic Crimping Tool Busbar Processing Machine Small Size High Flexibility Hydraulic Crimping Tool Busbar Processing Machine Small Size

Large Image :  High Flexibility Hydraulic Crimping Tool Busbar Processing Machine Small Size

Product Details:
Place of Origin: ningbo china
Brand Name: Linkai
Certification: ISO
Model Number: EPCB-401
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: get the latest
Packaging Details: wooden case
Delivery Time: 2-4 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100sets/week
Detailed Product Description
Model: EPCB-401 Name: Hydraulic Bus Bar Machine
Voltage: 220V 50HZ Bedning Force: 270KN
Bending Range: 125x12.5mm Max Function: Cutting Punching Bending(horizontal And Erective)
High Light:

hydraulic cable crimping tool

,

hydraulic wire crimping tool

EPCB-401 220V 50HZ Four Function In One Multi-function Busbar Processing Machine



Hydraulic Bus-bar machine

Item number 06232 06231A 06231
Model EPCB-301 EPCB-401A EPCB-401
Function

with three functions,cutting,

punching and bending

punching, bending and crimping

with Four functions,cutting,

punching and bending(horizontal

and erective)

Dimension of

work table

approx.690x690x730mm approx.690x690x730mm approx.690x690x730mm

Voltage single

phase

220V50HZ 220V50HZ 220V50HZ

Rating oil

pressure

700kg/cm2 700kg/cm2 700kg/cm 2
Bending force 170KN/200KN 170KN/200KN 270KN



Bending range

150x10mm max/200x12mm max 150x10mm max/200x12mm max 125x12.5mm max
Cutting force 200KN/300KN 200KN/300KN 200KN/300KN
Cutting rang 150x10mm max/200x12mm max 150x10mm max/200x12mm max 150x10mm max/200x12mm max
Punching force 300KN/350KN 300KN/350KN 300KN/350KN

Distance from hole

to sheet side

95x110mm max 95x110mm max 95x110mm
Punch rang

φ10.5mmΦ13.8mm

φ17mmΦ20.5mm

φ10.5mmΦ13.8mm

φ17mmΦ20.5mm

3/8"(Φ10.5mm),1/2"(φ13.8mm),

5/8"(φ17mm),3/4"(φ20.5mm)

Package wooden case wooden case wooden case

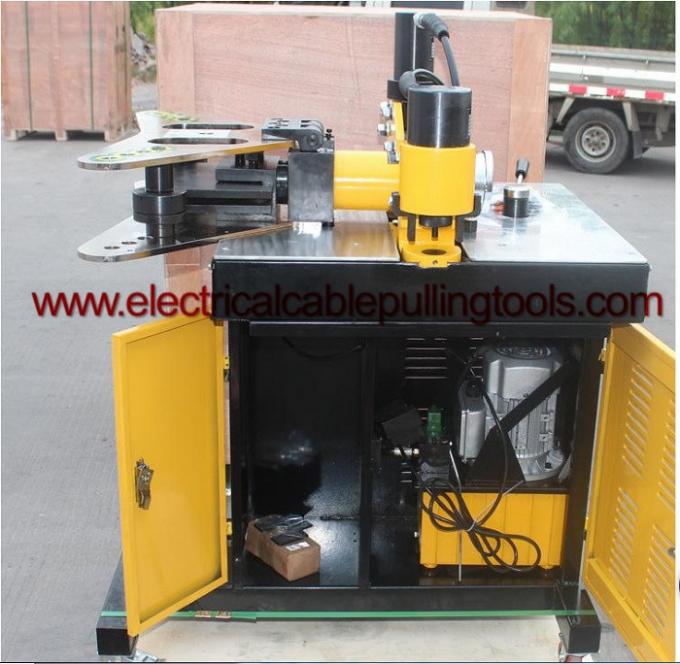

Four in one bus machine EPCB401

Features:

cutting, punching, bending flat stand, the machine and high flexibility, small size and strong function, high productivity and efficiency. Is to produce a large electric control box and transmission and distribution construction works on site an essential tool

Standard equipment:
Electric hydraulic pump, cutting, punching, bending flat, vertical bending tools.
